ADR 36: Marketing Landing Page

Status: Accepted
Date: 2026-06-08
Last Updated: 2026-06-09

Terms (this ADR)

ID	Term	Meaning
Rn	Functional requirement	Numbered obligation the system must meet (R1, R2, …).
NRn	Non-functional requirement	Quality attribute: security, performance, operability (NR1, NR2, …).
Cn	Constraint	Non-negotiable boundary; violating it invalidates the decision (C1, C2, …).
CCn	Cross-cutting challenge	Risk or tension that spans components, with a documented mitigation (CC1, …).
Landing	Marketing SPA	Public substratum.cloud site in apps/landing — families-first copy, not the SaaS dashboard.
Prerender	Build-time HTML	Node script renders Mithril per locale into static index.html for crawlers and first paint.
Spindle	Tangled CI	Git-push pipeline on Tangled that builds and deploys artifacts.
Midnight Gallery	Visual theme	Cinematic Noir / editorial asymmetry shared with file-explorer (DESIGN.md).

Canonical product vocabulary: Glossary.

Context

Substratum needs a public marketing surface at substratum.cloud that explains the product to families first, household helpers second, and builders third. Copy should come from product-overview.md; technical depth links to technical-specification.md.

Documentation already ships on Tangled Sites (ADR 06). The SaaS dashboard uses Mithril.js on DigitalOcean (ADR 08) with Lingui i18n (ADR 14). The landing page must reuse the same frontend stack and visual language without coupling to gateway auth or drive APIs.

Marketing SEO requires real <h1>, <meta>, and hreflang on first response. The chosen host serves static files only (no SSR server). App Platform and a GitHub mirror were considered but deferred for v1.

North star sentence: Your memories live in more than one home you trust — and you can see that they're safe.

Visual design

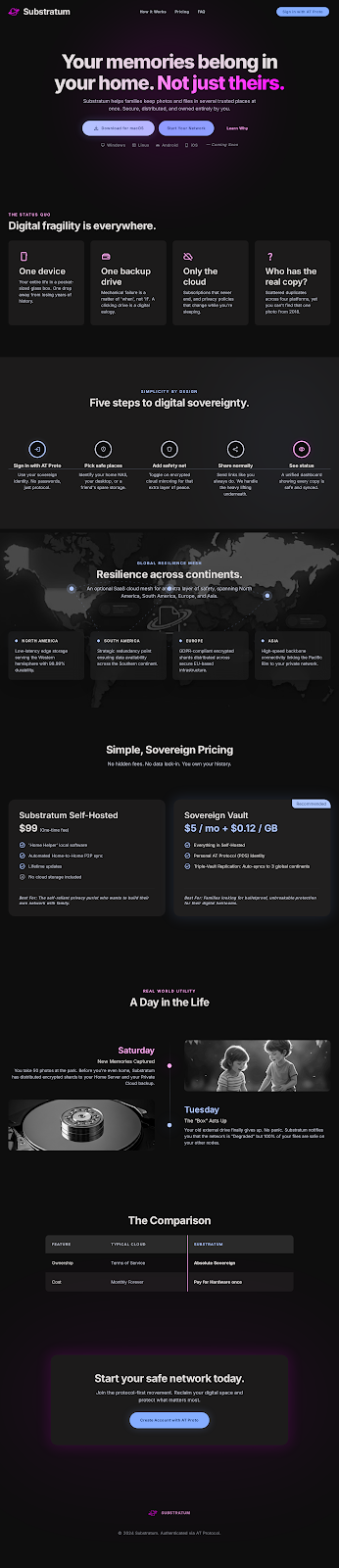

Full-page mockup exported from Google Stitch (site landing page design). Use this as the layout and tonal reference when implementing apps/landing; copy still comes from product-overview.md.

Stitch section	ADR v1 section
Hero + platform CTAs	Hero
Digital fragility cards	Problem
Five steps to sovereignty	How it works
Resilience map (centerpiece)	Centerpiece
A day in the life timeline	Week in life
Typical cloud vs Substratum	Compare
Pricing cards	Pricing (two tiers; Coming soon badges — no dollar amounts in v1)
Footer CTA + AT Proto sign-in	CTA + Footer

Requirements

Functional requirements (R1–R13)

ID	Requirement
R1	Ship apps/landing as a single-scroll marketing page per locale: Header → Hero → Problem → How it works → Centerpiece → Week in life → Compare → Pricing → Roles → Privacy → FAQ → CTA → Footer.
R2	Hero and body copy use family voice (homes/places, not mesh jargon); builder strip links to technical-specification.md.
R3	Support six locales: en, es, fr, de, pt-BR, fil — same set as Lingui config and supportedLocales in apps/landing/src/i18n.ts.
R4	LanguagePicker switches locale, persists substratum.locale in localStorage, and navigates to /<locale>/ for shareable URLs.
R5	Build pipeline produces one prerendered index.html per locale with visible body copy, injected <title>, <meta description>, hreflang, and canonical.
R6	Default locale (en) is served at /; other locales at /<locale>/ (e.g. /es/).
R7	Ship robots.txt, sitemap.xml, and og:image (public/og-image.png) with prerender-injected Open Graph meta.
R8	Client entry (main.tsx) hydrates Mithril on #app after load; interactivity (picker, scroll animations) runs in browser only.
R9	Use @substratum/ui-kit components (DisplayHeader, SurfaceCard, Button, Chip, GradientProgressBar, Accordion, Icon, LanguagePicker) — not full app Layout.
R10	Spindle deploy: pnpm nx build landing (includes prerender) then rsync dist/apps/landing/ to droplet /var/www/landing.
R11	Caddy serves locale directories and SPA fallback via try_files {path} {path}/index.html /index.html.
R12	Build-time env exposes VITE_SITE_ORIGIN, VITE_DOCS_URL (required), and optional VITE_INSTALLER_URL, VITE_APP_URL for CTAs. Sections and prerender read these only through the encapsulated config/ module — never import.meta.env outside src/config/.
R13	Pricing section ships in v1 with two tiers framed per ADR 32 (home copies vs optional safety copies). All price points and paid sign-up CTAs show Coming soon Chip badges — no dollar amounts, Stripe, or Stitch naming (Field-Vault, Sovereign Vault).

Non-functional requirements (NR1–NR6)

ID	Requirement
NR1	View-source on / and /es/ shows localized <h1> and meta without executing JavaScript.
NR2	Non-technical reader understands value proposition in ~10 seconds.
NR3	Visual consistency with file-explorer tokens and ui-kit (Midnight Gallery).
NR4	Fast client bundle — static Mithril SPA, no heavy framework bloat (ADR 08).
NR5	prefers-reduced-motion respected for scroll animations.
NR6	Landing deploy artifact stays out of Tangled git (dist/ on server only).

Constraints (C1–C5)

ID	Constraint
C1	Docs remain on Tangled Sites /site (ADR 06); landing does not share that deploy directory.
C2	No DigitalOcean App Platform or GitHub mirror for v1 — Pulumi + droplet + Spindle only.
C3	ui-kit does not import Lingui; landing resolves strings and passes plain string props (ADR 14).
C4	v1 routing is anchor links on a single scroll page — no client m.route.
C5	Theme CSS reuses apps/file-explorer/src/styles/index.css until libs/theme exists.

Cross-cutting challenges (CC1–CC4)

ID	Challenge	Mitigation
CC1	Droplet serves static files only — no SSR	Build-time prerender per locale in phase 1 (not deferred).
CC2	Tangled Sites allows one site config per repo	Docs keep /site; landing on separate DO droplet with custom domain.
CC3	Locale parity across Lingui catalogs	Same workflow as ADR 14: explicit IDs, all messages.json updated per change.
CC4	Prerendered markup vs client mount	Standard Mithril client entry; mount replaces or matches prerendered #app content.

Decision

1. Split hosting surfaces

Surface	Host	Build	Artifact in Tangled git?
Docs	Tangled Sites (/site)	Husky + VitePress	Yes (site/)
Landing	DO Droplet + Caddy	Spindle: nx build landing + rsync	No (dist/ on server)

Landing targets substratum.cloud on a small DigitalOcean Droplet. wickedbased (App Platform spec library) is deferred until App Platform is needed.

2. Deploy pipeline (Spindle + Pulumi)

Tangled push main
  → Spindle: pnpm install && pnpm nx build landing
      (set VITE_SITE_ORIGIN, VITE_DOCS_URL, optional VITE_INSTALLER_URL / VITE_APP_URL)
      (Vite client bundle + Node prerender → dist/apps/landing/<locale>/index.html)
  → Spindle: rsync dist/apps/landing → droplet:/var/www/landing
  → (on infra/ changes) Spindle: pulumi up

Spindle secrets: DIGITALOCEAN_TOKEN, PULUMI_ACCESS_TOKEN, VITE_SITE_ORIGIN, VITE_DOCS_URL (deploy SSH key: Pulumi stack output landingSshPrivateKey)

3. Infrastructure (Pulumi)

• Path: infra/marketing/ (stack name marketing)
• Resources: Droplet, Reserved IPv4, Firewall, DNS A record (when domain is set), SpacesBucketCorsConfiguration on the installer bucket, ProjectResources
• Cloud-init: Ubuntu 24.04 + Caddy, /var/www/landing, try_files for locale paths + SPA fallback; Caddy auto-TLS when domain is configured
• Exports: dropletIp (reserved IP), reservedIpAddress, dropletId, landingSshPrivateKey (secret), landingDeployKeyFingerprint, installerCdnBaseUrl, downloadsBucketName

The Reserved IPv4 is the stable public address for DNS, SSH, and HTTPS. The DNS A record and Let's Encrypt validation target the reserved IP — not the droplet's ephemeral address — so replacing the droplet does not churn DNS or hit certificate rate limits.

Component	Role
Reserved IPv4	Stable target for DNS A, SSH deploy, and Caddy TLS; reassigned when the droplet is replaced
Droplet + Caddy	Serves locale HTML and hashed assets from /var/www/landing; terminates HTTPS on :443
Spaces bucket	Hosts macOS installer .dmg files and latest.json; CDN origin for browser downloads
Spaces CORS	Allows fetch() of the installer manifest from https://substratum.cloud at build/runtime
Firewall	Inbound TCP 22, 80, 443 only; outbound open for apt, Let's Encrypt, and Spaces uploads from operators

4. Build-time prerender (phase 1)

1. compile-locales (Lingui → messages.mjs per locale)
2. Vite production client bundle (JS/CSS/assets)
3. prerender-landing (Node: apps/landing/scripts/prerender.mjs)
     for each locale in supportedLocales:
       dynamicActivate(locale)
       html = m.render(LandingPage, { locale })
       write dist/apps/landing/<locale>/index.html
       inject <title>, <meta>, link rel="alternate" hreflang
4. dist/apps/landing/index.html → default locale (en)
5. rsync entire dist/apps/landing/ to droplet

Nx build script:

"build": "pnpm compile-locales && vite build && node scripts/prerender.mjs"

5. URL layout (Caddy)

URL	File
/	/var/www/landing/index.html (default en)
/es/	/var/www/landing/es/index.html
/fr/, /de/, /pt-BR/, /fil/	same pattern
/assets/*	shared Vite hashed assets at deploy root

6. App structure

apps/landing/src/
  main.tsx, App.tsx
  config/            # load.ts, accessors.ts, types.ts — barrel index.ts only
  sections/          # Hero, Problem, HowItWorks, Pricing, …
  components/        # MarketingHeader, MarketingFooter, PlanCard
  styles/landing.css
  i18n/              # supported-locales.ts, activate.ts, message-ids.ts, locales/
apps/landing/scripts/
  prerender.mjs
apps/landing/public/
  robots.txt, sitemap.xml, og-image.png

7. Tech stack

Layer	Choice
Framework	Mithril.js + TSX
UI	@substratum/ui-kit
Theme	file-explorer index.css (until libs/theme)
i18n	Lingui — explicit IDs, 6 locales
Build	Nx + Vite → dist/apps/landing + prerender

8. Implementation phases

Phase	Deliverable
1	apps/landing scaffold + config/ module + Vite build + prerender per locale + en copy for all sections (including Pricing with Coming soon badges)
2	infra/marketing Pulumi + Caddy cloud-init
3	Spindle landing.yml (pulumi up + build + rsync)
4	All locales + centerpiece animation
5	Custom domain + TLS; sitemap.xml / Search Console
6	/privacy, /terms as separate prerendered pages (v2)

9. Encapsulated configuration

Follow the global encapsulated-configuration rule (see root AGENTS.md and gateway Config pattern). One apps/landing/src/config/ module tree owns all environment parsing:

File	Role
types.ts	LandingConfig, LandingLinks, LandingMeta
load.ts	loadLandingConfig() — sole import.meta.env reader
accessors.ts	landingLinks, landingMeta, landingAvailability, isLinkLive()
index.ts	Barrel only — re-exports public API; no runtime logic

main.tsx, sections, components, and prerender.mjs import from config/ only. Vite dev defaults live in vite.config.ts env:; production values in Spindle build env and .env.example.

Variable	Required	Purpose
VITE_SITE_ORIGIN	yes	Canonical origin for prerender canonical, og:url, sitemap (no trailing slash)
VITE_DOCS_URL	yes	Getting started + technical spec links
VITE_INSTALLER_URL	no	Hero + tier-1 (home copies) CTA — omit for Coming soon UX
VITE_APP_URL	no	Sign-in / SaaS CTA — omit for Coming soon UX

10. Pricing (v1 — Coming soon)

The Pricing section is in the v1 scroll (between Compare and Roles), not deferred. Copy uses product-overview.md framing — two tiers families already understand:

Tier	Framing	v1 UX
Home copies	Self-hosted path: home helper, up to three places, you control disk	PlanCard + Coming soon on price; installer CTA when VITE_INSTALLER_URL is set
Optional safety copies	Substratum-operated secure storage in more than one part of the world; home copies remain yours	PlanCard + Coming soon on price and sign-up; app CTA when VITE_APP_URL is set

PlanCard is a landing-local composed component (SurfaceCard + Chip + Button) — not a ui-kit primitive.

Why no dollar amounts yet: Dollar pricing waits until Substratum operates its own PDS and can cover storage costs for optional safety copies (ADR 32 C8 — no external billing provider in v1; entitlements in Postgres until webhooks ship). Proposed targets and free vs paid identity paths are published in Business model. Until checkout ships, Chip badges read Coming soon and tier copy explains the two-layer model without Stitch dollar figures or vault naming.

Header nav includes a Pricing anchor (#pricing) alongside How it works and FAQ.

Rejected alternatives

Alternative	Why rejected
DigitalOcean App Platform	Requires GitHub/GitLab mirror; learning path is Pulumi + small server + Spindle for v1.
Tangled Sites for landing	One site config per repo (docs use /site); custom domains on Tangled Sites not available yet.
Client-only SEO (no prerender)	Marketing domain needs semantic HTML and meta on first response; droplet has no SSR.
Merging landing into site/	Conflicts with docs deploy path and separate domain strategy.

Consequences

Positive

• Families-first message on a dedicated domain without touching docs or SaaS deploy paths.
• SEO and first paint from static prerender; interactivity from lightweight Mithril SPA.
• Reuses ui-kit, Lingui, and Midnight Gallery — consistent brand with file-explorer.
• Predictable ops: rsync static tree to droplet; no App Platform coupling.

Negative

• Separate infra (droplet, Pulumi, Spindle secrets) to maintain alongside Tangled docs.
• Prerender script must stay in sync with locale list and page components.
• Open product decisions (hero headline, primary CTA, centerpiece) block final copy polish.

Neutral

• wickedbased, live gateway status footer, and App Platform migration remain deferred.
• v2 adds privacy/terms as additional prerendered routes.

Open decisions

#	Question	Options
1	Hero headline	Trust/places vs photos vs anti-single-device
2	Primary CTA at launch	Default: hero → installer when VITE_INSTALLER_URL set; sign-in Coming soon until VITE_APP_URL configured
3	Default locale URL	/ = en only vs auto-redirect from Accept-Language
4	Centerpiece	Mesh animation vs illustration
5	Domain phase 1	IP + HTTP first vs substratum.cloud immediately

Verification

Scenario	Expected
View-source /	Localized <h1>, <title>, <meta description> without JS
View-source /es/	Spanish body copy and hreflang alternates
LanguagePicker	Switches locale and navigates to /<locale>/
Spindle deploy	Rsynced prerendered tree; Caddy serves correct locale HTML
Non-technical reader	Understands value in ~10 seconds

Related

• Glossary
• Product overview — primary copy source
• Getting started — household helper setup path
• Technical specification — builders and operators
• File explorer DESIGN.md — Midnight Gallery
• Landing design mockup — Google Stitch full-page reference (also embedded above)
• ADR 06: Documentation Hosting — docs on Tangled Sites
• ADR 08: Hosting and Frontend Stack — DO, Mithril, Global Triangle
• ADR 14: Frontend Internationalization — Lingui, ui-kit boundaries
• ADR 32: Account Entitlements and Hosting Policy — two-tier pricing framing; PDS-cost timing for dollar amounts
• wickedbased — DO App Platform spec library (deferred)
